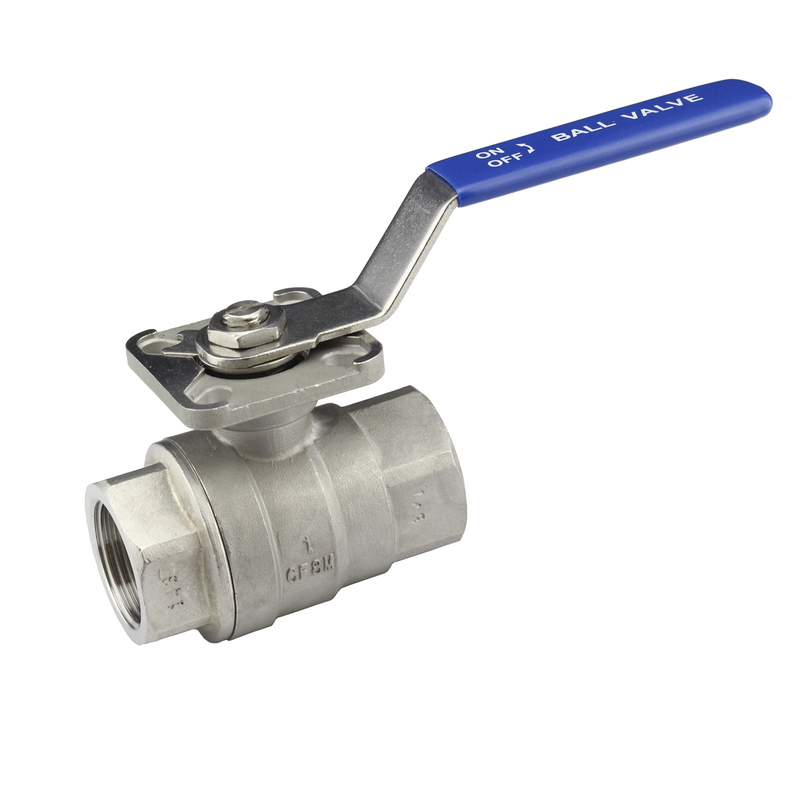

2pc 3''water Ball Valve CF8M 1000WOG Valve

1/4"-6"
  • BWGCB04

  • BEWIN

  • 84818040.90

  • Tianjin Port

  • BSP NPT

  • Durable

  • SS304, 316, 316L

  • Use for water, oil, gas

  • Polybag+Cartons+Pallet

  • 100 pcs

Availability:
Quantity:
2pc 3''water Ball Valve CF8M 1000WOG Valve
2pc 3''water Ball Valve CF8M 1000WOG Valve
2pc 3''water Ball Valve CF8M 1000WOG Valve
2pc 3''water Ball Valve CF8M 1000WOG Valve
2pc 3''water Ball Valve CF8M 1000WOG Valve
2pc 3''water Ball Valve CF8M 1000WOG Valve

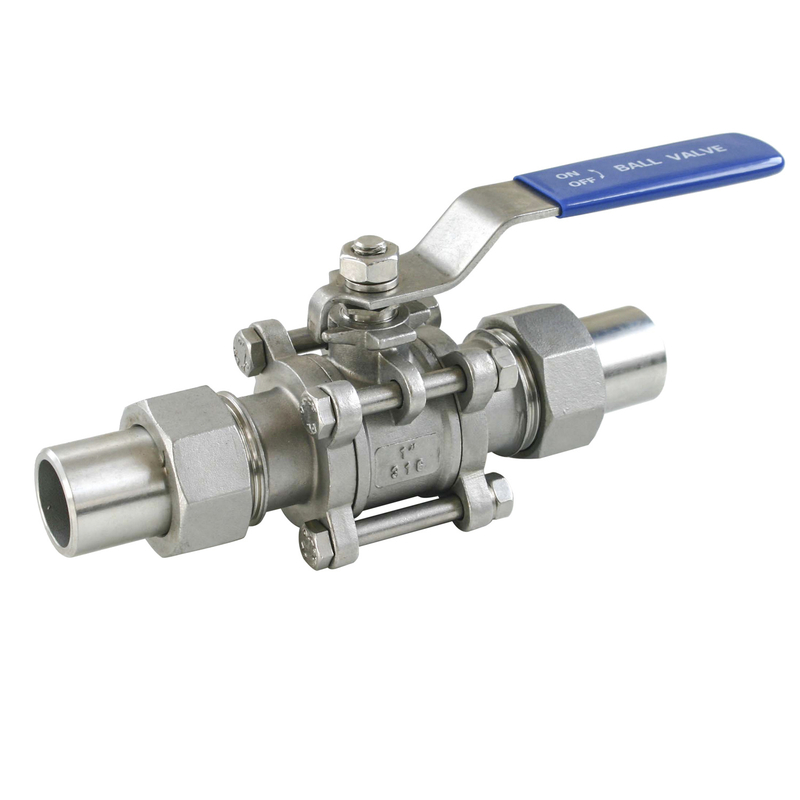

Cangzhou Bewin produces various models of ball valves, 1 pc ball valve, 2 pc ball valve, 3 pc ball valve, 3 way ball valve, non-retention ball valve, flange ball valve, etc.

For standards, we have American standard, Japanese standard, German standard...

Size: DN8-DN100; 1/4'-4'
Grade: AISI304, AISI316L
Seal: PTFE
Standard: 3A, SMS, DIN, etc
Connections: welded, clamp, male threaded, female threaded, flanged, union connection
External surface Ra 0.8, inner surface Ra 0.6
Manual or pneumatic actuated or electirc actuated are chosen acc. to the different applications.

Application: Water, gas, oil, food processing or industrial processing.


Fetures
Pipe thread as per NPT, BSPT, DIN258, DIN2999, ISO228CLASSA
Temparature range: -20°C~232°C
Suitable medium: Water, oil, gas and some corrosive liquid
Blow-out proofs stem/full port
Investment casting body
1000PSI(PN63) W.O.G
Locking device
Material: SS304, SS316L

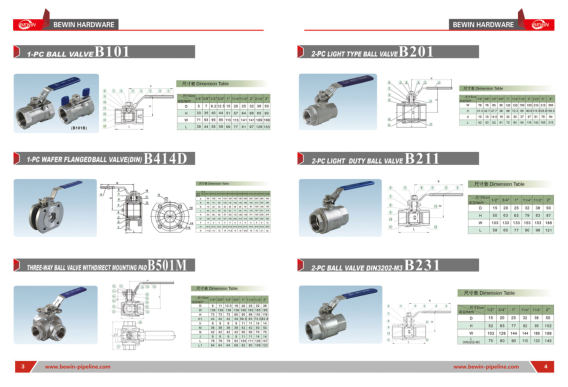

BEWIN CATALOGUE_2BEWIN CATALOGUE_4BEWIN CATALOGUE_5BEWIN CATALOGUE_3

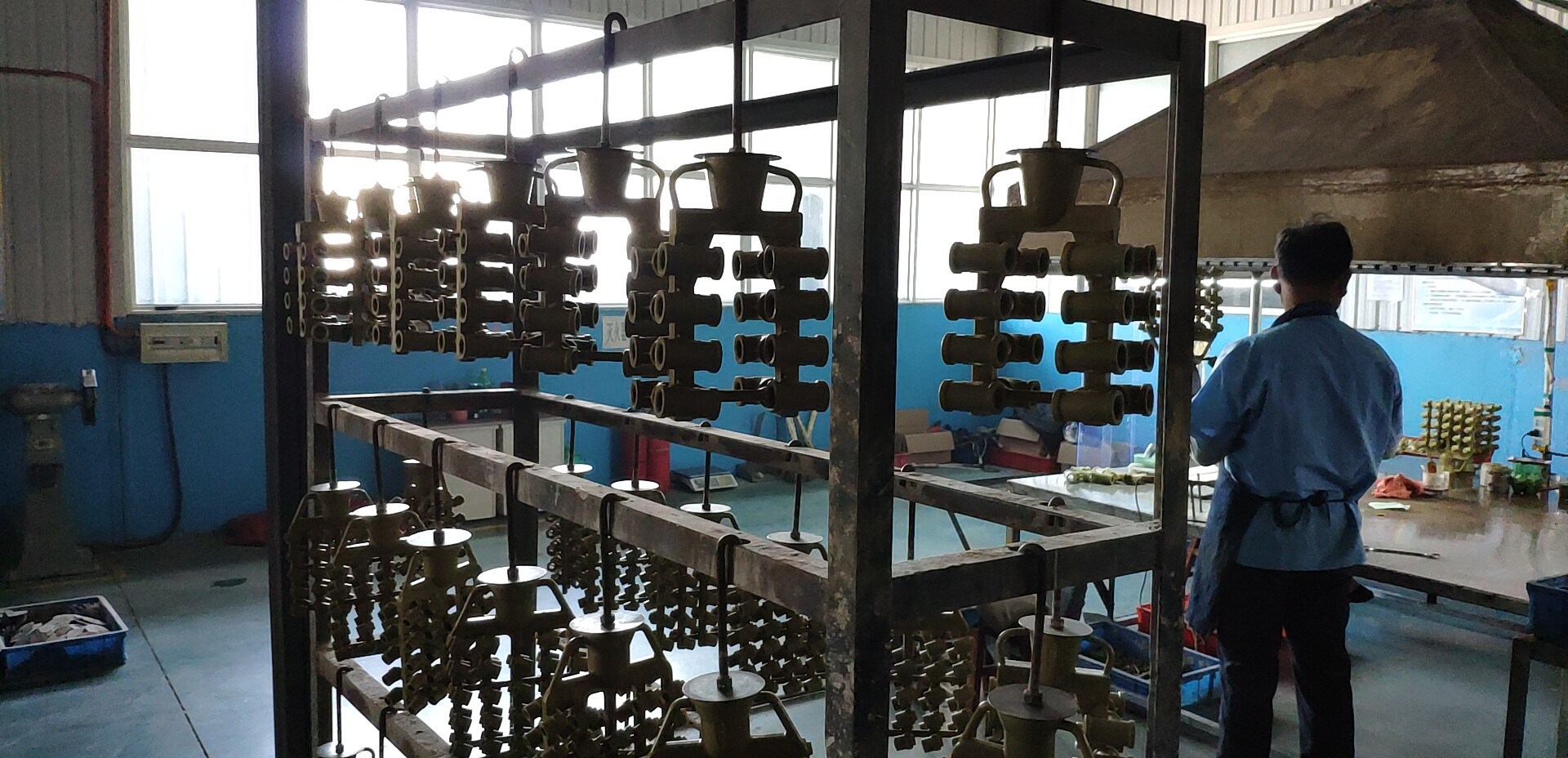

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (17)
