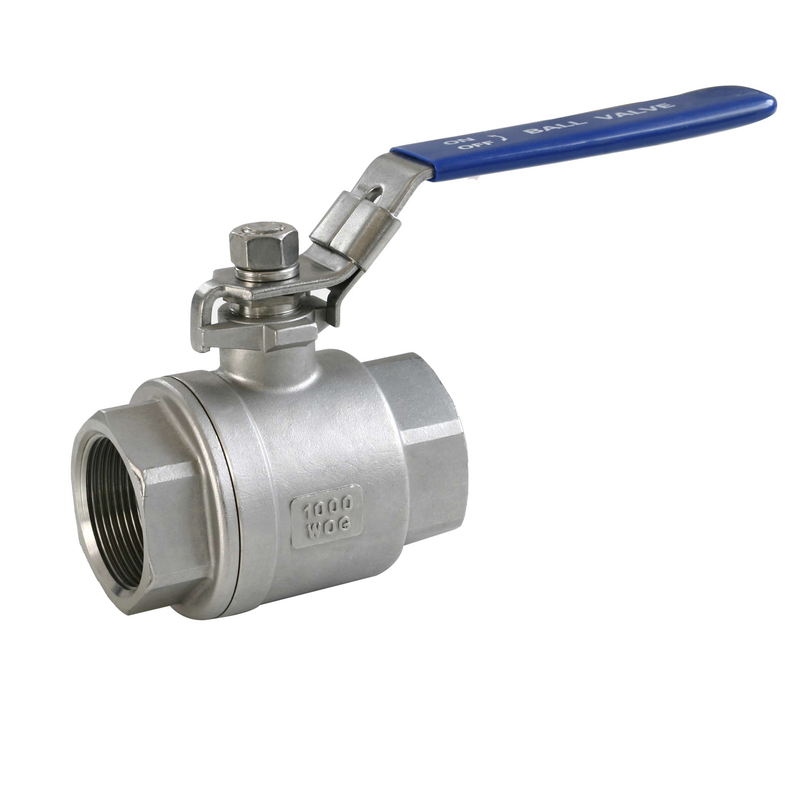

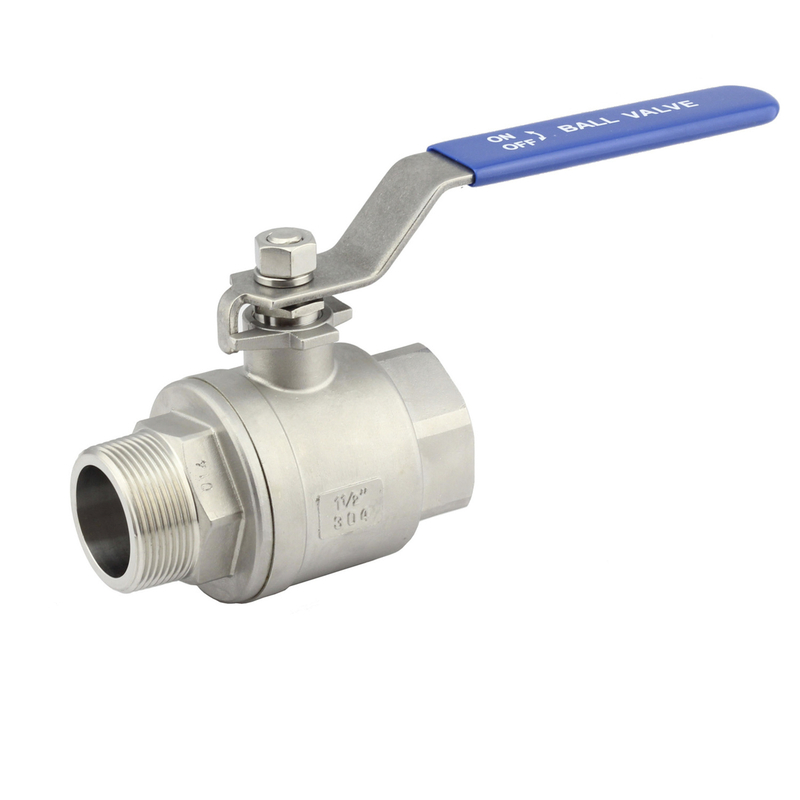

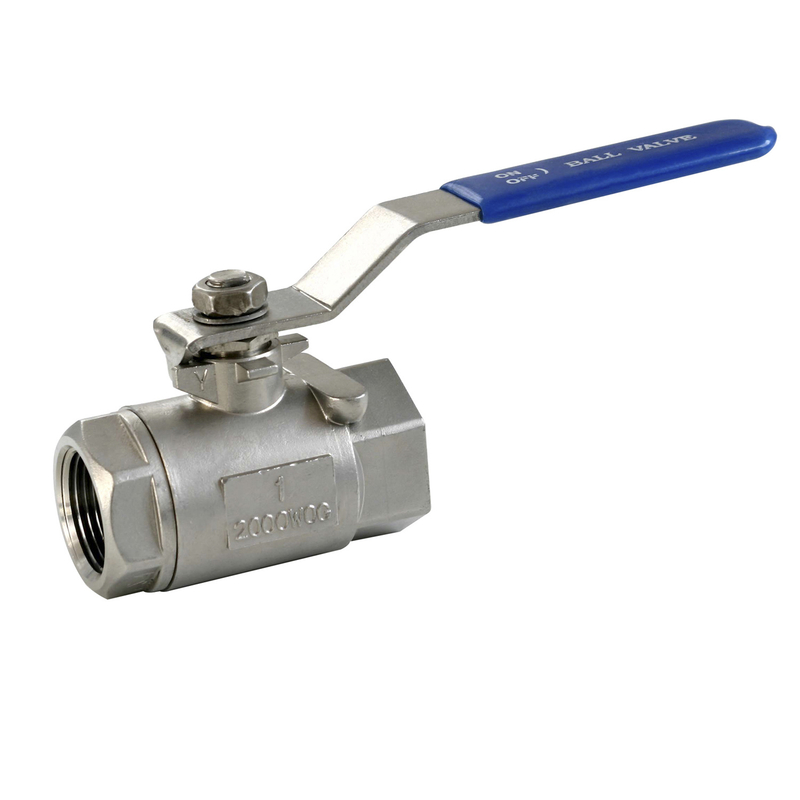

Stainless Steel 2 PCS PTFE Body Seat SS304 Ball Valve

NPT /BSPT Female threaded ends, 2-piece body, Full port, 1000 psi Wog, stainless steel body with lockable handle
  • BWGCB07
  • BEWIN
  • 8481804090
  • Tianjin port
  • BSP NPT PT
  • Durable
  • 1000 WOG
  • 1/4''-4''
  • Stainless steel 304/316
  • Industry, water, gas , oil
  • polybag+cartons+pallet / wooden case according to customer's requirement
  • 10 pcs
Quantity:

ball valve


SPECIFICATION

Material: Stainless steel ,SS304/CF8, SS316/CF8M,WCB, and so on
British Standard : BS21.0
DIN Standard: DIN2999
American Standard:ASME B1.20.1
ISO Standard: ISO 228-1, ISO7/1
Size:  1/4''-4''
Certificate: ISO9001: 2000,CE
Pressure: 150LB, 1000WOG, PN64
Temperature Range: -20-250 degree C
Application:Applied to stainless steel pipeline system, water system, petrolum system etc
Connection Ends:Socket weld or Threaded: NPT, BSP, BSPT etc.
Suitable medium:Petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, high&low pressure pipeline etc.
Features: 1.1000PSI/PN63
                   2.Full Port
                   3.Investment Casting
                   4.Blow out Proof Stem
                   5.Locking Device Handle(Option)
                   6.PED97/23/EC(CE0036) Approved
                   7.Casting Approved Ad2000-W0
                   8.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
                   9.Inspection Testing: API598, EN 12266
Related Type:

1PC BALL VALVE 2PC BALL VALVE 2PC BALL VALVE LIGHT DUTY
2PC BALL VALVE DIN3202 TYPE 3PC BALL VALVE 3PC BALL VALVE WITH DIRECT  MOUNTING PAD
3-WAY BALL VALVE
  ( L & T TYPE)
2PC FLANGE BALL VALVE                ( JIS, ANSI, DIN) 3PC FLANGE VALL VALVE
    ( JIS & ANISI & DIN)
MINI BALL VALVE                          BIBCOCK VALVE GATE VALVE
GLOBE VALVE SWING CHECK   VALVE               1PC SPRING VERTICAL CHECK VALVE
2PC SPRING VERTICAL             CHECK VALVE 3PC SPRING VERTICAL CHECK VALVE Y-STRAINER
If you need more ,please contact us.


Customers' drawings or designs are available.

CANGZHOU-BEWIN-PIPELINE-CO-LTD-(125)BALL VALVES

Packing&Delivery

Packing
1.Polybag+Cartons+Pallet
2.Inner Carton Box, Outside Wooden Case/Pallet
3.Customized according to customer's requirements.

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (22)
CANGZHOU-BEWIN-PIPELINE-CO-LTD- (23)


Delivery Details
1.Normal delivery times is from 15 to 30 days after receiving the deposit
2. According to the quantities and specifications of each order

Shipping
1. Large Quantity Transport By Sea
2. Small Quantity or Sample Transport By Air
3. Inland Transport By Train
4. Shipping according to customers requirement
PORT: Xingang Port Tianjin, Shanghai Port, Beijing Airport

delivery

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (1)CANGZHOU-BEWIN-PIPELINE-CO-LTD- (15)CANGZHOU-BEWIN-PIPELINE-CO-LTD- (3)CANGZHOU-BEWIN-PIPELINE-CO-LTD- (5)CANGZHOU-BEWIN-PIPELINE-CO-LTD- (9)

1. Q: How about trade terms ?
A: FOB, CFR, CIF will be accepted
2.What are your major products?
A:We mainly dealing with Pipe, Ball Valve, Post Spike etc.
3.Q:Can I get some samples?
A:We can offer the samples free but you need paid the freight cost by yourself.
4.Q: Can you supply the threaded treatment pipe Fittings end ?
 A: Yes, We can supply threaded and coupled end treatment.
5.Q:What kind of payment is accepted?/ How about the payment terms?
A:T/T , L/C etc
6.Q:How about the delivery time?
A: New production:Need about 15-40 days after receiving your down payment or L/C.
Stock: After your down payment ,we will deliver within about 7days.
