BWHydraulicF05
BEWIN
730799000
NINGBO PORT
Medium Pressure
1/16''-1''
nature
Casting
stainless steel
connect conductors
standard export packaging
100 pcs
| Quantity: | |
|---|---|
| Number | Thread | I.D. | A | E | F | B | ||
| Part | in. | Hose | in. | mm. | in. | in. | in. | mm. |
| 10643-4-4 | 7/16-20 | -4 | 1.92 | 49 | 9/16 | 9/16 | 1.19 | 30 |
| 10643-5-4 | 1/2-20 | -4 | 1.98 | 50 | 9/16 | 5/8 | 1.25 | 32 |
| 10643-6-4 | 9/16-18 | -4 | 1.96 | 50 | 9/16 | 11/16 | 1.23 | 31 |
| 10643-4-6 | 7/16-20 | -6 | 2.18 | 55 | 11/16 | 9/16 | 1.18 | 30 |
| 10643-5-6 | 1/2-20 | -6 | 2.24 | 57 | 11/16 | 5/8 | 1.24 | 31 |
| 10643-6-6 | 9/16-18 | -6 | 2.27 | 58 | 11/16 | 11/16 | 1.27 | 32 |
| 10643-8-6 | 3/4-16 | -6 | 2.46 | 62 | 11/16 | 7/8 | 1.46 | 37 |
| 10643-10-6 | 7/8-14 | -6 | 2.48 | 63 | 7/8 | 1 | 1.48 | 38 |
| 10643-8-8 | 3/4-16 | -8 | 2.60 | 66 | 13/16 | 7/8 | 1.35 | 34 |
| 10643-10-8 | 7/8-14 | -8 | 2.84 | 72 | 7/8 | 1 | 1.47 | 37 |
| 10643-12-8 | 1 -1/16-12 | -8 | 2.79 | 71 | 1 -1/16 | 1 -1/4 | 1.54 | 39 |
| Number | Thread | I.D. | A | E | B | |||
| Part | in. | Hose | in. | mm. | in. | in. | mm. | |
| 10343-4-4 | 7/16-20 | -4 | 1.97 | 50 | 9/16 | 1.24 | 31 | |
| 10343-5-4 | 1/2-20 | -4 | 1.81 | 46 | 9/16 | 1.08 | 27 | |
| 10343-6-4 | 9/16-18 | -4 | 1.82 | 46 | 11/16 | 1.09 | 28 | |
| 10343-4-6 | 7/16-20 | -6 | 2.23 | 57 | 3/4 | 1.23 | 31 | |
| 10343-5-6 | 1/2-20 | -6 | 2.24 | 57 | 3/4 | 1.24 | 31 | |
| 10343-6-6 | 9/16-18 | -6 | 2.38 | 60 | 3/4 | 1.38 | 35 | |
| 10343-8-6 | 3/4-16 | -6 | 2.28 | 58 | 7/8 | 1.28 | 33 | |
| 10343-10-6 | 7/8-14 | -6 | 2.38 | 60 | 15/16 | 1.38 | 35 | |
| 10343-8-8 | 3/4-16 | -8 | 2.68 | 68 | 7/8 | 1.43 | 36 | |
| 10343-10-8 | 7/8-14 | -8 | 2.62 | 67 | 15/16 | 1.37 | 35 | |
| 10343-12-8 | 1 -1/16-12 | -8 | 2.76 | 70 | 1 -1/8 | 1.51 | 38 | |
For more details, please contact us.
Email: grace@bewin-pipeline.com
Whatsapp:+8615732188966
We can give precise drawing introduction and precise quotation according to the demand.

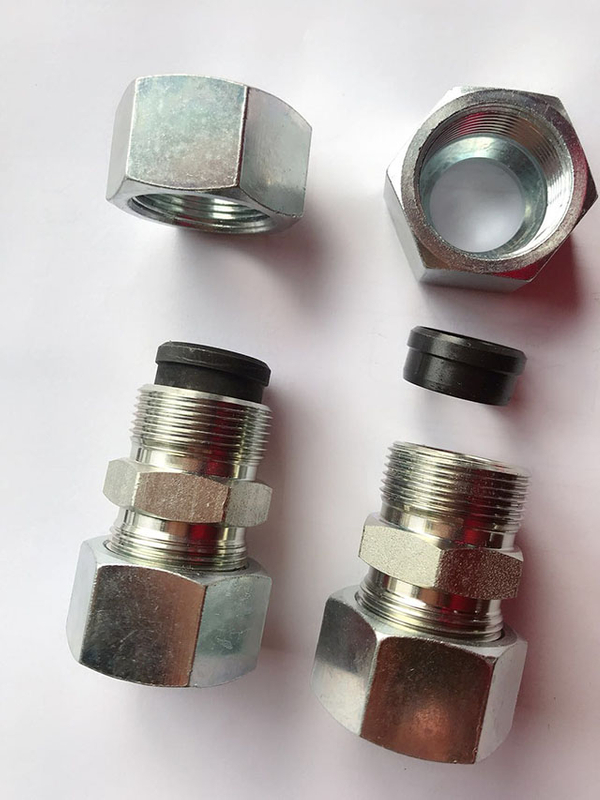

Product Show
