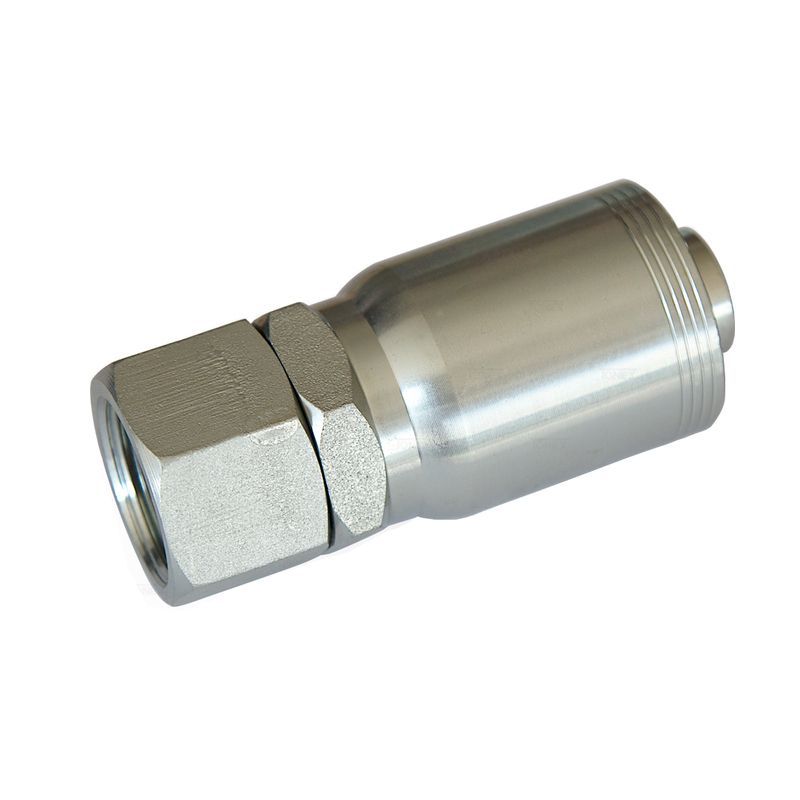

Hydraulic Fitting Metric Male 24° L. T. Reducers

Share to:

Hydraulic Fitting Metric Male 24° L. T. Reducers

Hydraulic fittings connect conductors such as hoses, pipes and tubes in a hydraulic system. Most fittings have a male and female component that join to form a connection. These connections help contain and direct the flow of hydraulic fluid in the conductor while preventing leaks and maintaining pressure.

Model:
BWHydraulicF07
Brand:
BEWIN
Code:
730799000
Port:
NINGBO PORT
Pressure:
Medium Pressure
Size:
1/16''-1''
Color:
nature
Technique :
Casting
Material:
stainless steel
Function:
connect conductors
Package:
standard export packaging
MOQ:
100 pcs

Availability:

Quantity:


Inquire Add to Basket

Female 37 JIC10643

Number	Thread	I.D.	A		E	F	B
Part	in.	Hose	in.	mm.	in.	in.	in.	mm.
10643-4-4	7/16-20	-4	1.92	49	9/16	9/16	1.19	30
10643-5-4	1/2-20	-4	1.98	50	9/16	5/8	1.25	32
10643-6-4	9/16-18	-4	1.96	50	9/16	11/16	1.23	31
10643-4-6	7/16-20	-6	2.18	55	11/16	9/16	1.18	30
10643-5-6	1/2-20	-6	2.24	57	11/16	5/8	1.24	31
10643-6-6	9/16-18	-6	2.27	58	11/16	11/16	1.27	32
10643-8-6	3/4-16	-6	2.46	62	11/16	7/8	1.46	37
10643-10-6	7/8-14	-6	2.48	63	7/8	1	1.48	38
10643-8-8	3/4-16	-8	2.60	66	13/16	7/8	1.35	34
10643-10-8	7/8-14	-8	2.84	72	7/8	1	1.47	37
10643-12-8	1 -1/16-12	-8	2.79	71	1 -1/16	1 -1/4	1.54	39

Male 37 JIC10343

Number	Thread	I.D.	A		E	B
Part	in.	Hose	in.	mm.	in.	in.	mm.
10343-4-4	7/16-20	-4	1.97	50	9/16	1.24	31
10343-5-4	1/2-20	-4	1.81	46	9/16	1.08	27
10343-6-4	9/16-18	-4	1.82	46	11/16	1.09	28
10343-4-6	7/16-20	-6	2.23	57	3/4	1.23	31
10343-5-6	1/2-20	-6	2.24	57	3/4	1.24	31
10343-6-6	9/16-18	-6	2.38	60	3/4	1.38	35
10343-8-6	3/4-16	-6	2.28	58	7/8	1.28	33
10343-10-6	7/8-14	-6	2.38	60	15/16	1.38	35
10343-8-8	3/4-16	-8	2.68	68	7/8	1.43	36
10343-10-8	7/8-14	-8	2.62	67	15/16	1.37	35
10343-12-8	1 -1/16-12	-8	2.76	70	1 -1/8	1.51	38

For more details, please contact us.

Email: grace@bewin-pipeline.com

Whatsapp:+8615732188966
We can give precise drawing introduction and precise quotation according to the demand.

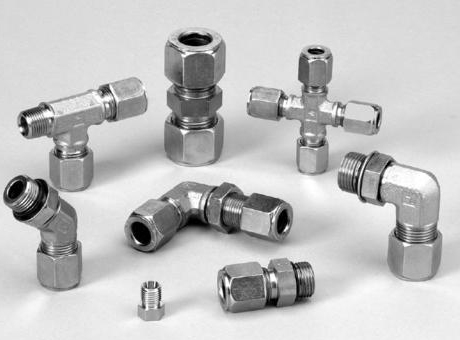

Product Show

FAQ

1. Do you have products in stock?
Yes, for most porducts, we have.

2. Can you produce Non standard product?
Yes, we can produce products as your requirements (according to your sample or drawing)

3. What is your payment terms?
Regularly,our payment term is : 30% deposit advance the producing, 70% balance before shiping.

4.Can you provide samples?
Yes.
