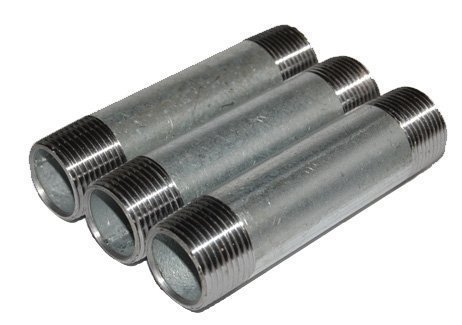

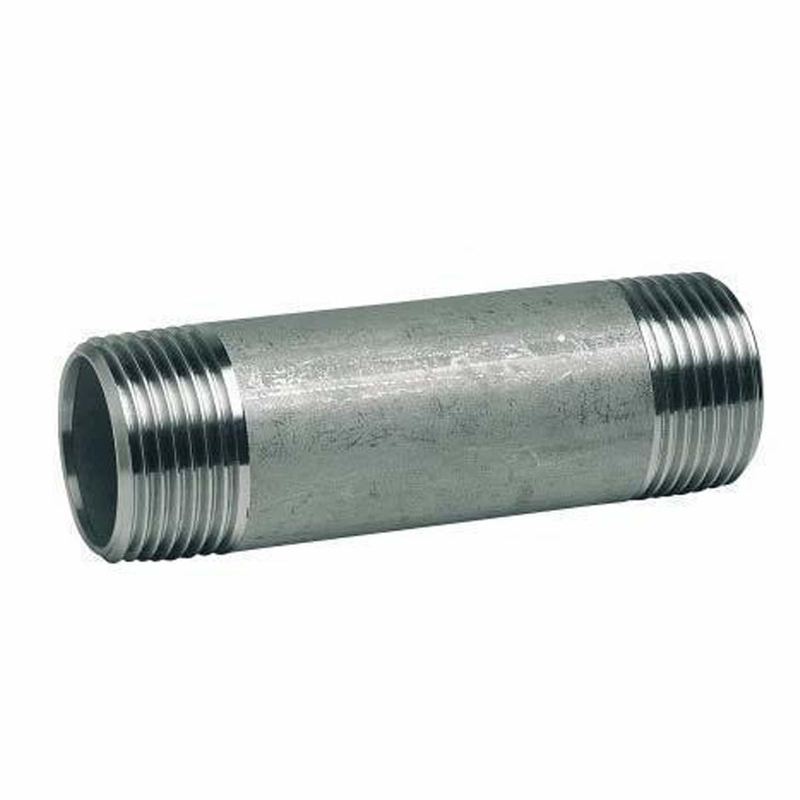

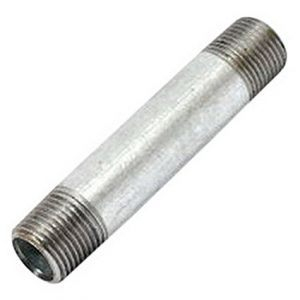

Barrel Nipples Black Prefabrication for Fire Protection & Gas 1/2"X30mm

We exporting Ba ll valves ,screwed fittings,fored ,flanges .Forged fittings including 2000/3000/6000LBS,with standard ASME b16.11,MSS-SP-79/83/95/97 in Stainless steel material .We have advanced equipment ,skilled workers ad strict QC system ensure the accurate size and high quality products.we belived in "quality Frist and Service Best"
  • 1/4"-4"
  • BEWIN
  • 8481804090
  • Tianjin
  • carbon steel
  • industrial usage water industrial usage
  • water
  • polybag carbon pallet
  • 200pcs
Quantity:

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (1)

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (35)

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (26)

CANGZHOU-BEWIN-PIPELINE-CO-LTD- (36)




STEEL PIPE NIPPLE DETAILS

Material

1.Carbon steel   2.Stainless steel

British Standard

Threads:BS21

DIN Standard

Threads:DIN2999

American Standard

Threads:ASTM A865, ASTM A733

Hydraulic Test

Test Pressure: Max2.5MPa

Working  Pressure: Max2.5MPa

Model

 Thread both end nipple, thread one end nipple, close/full nipple

Surface

1.Galvanized  2.Electro galvanised   3.normal black  4.sand blasting

Size

OD:1/8''-6''

WT: SCH20, SCH40, SCH60, SCH80, SC100,  SCH120, SCH160, STD, xs,  xxs, CLASS A, CLASS B, CLASS C etc

Length: Standard or Special

Series

Heavy series, Standard series, Mediun series, Light series

Connection

Male

Shape

Equal

Certificate

ISO, BV

Customers' drawing or designs are available.
