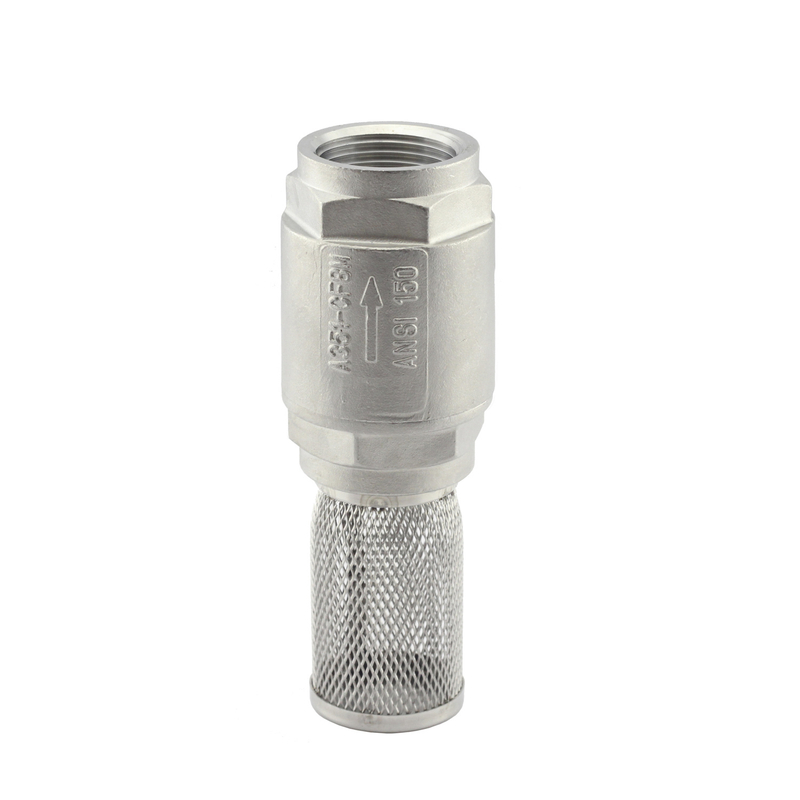

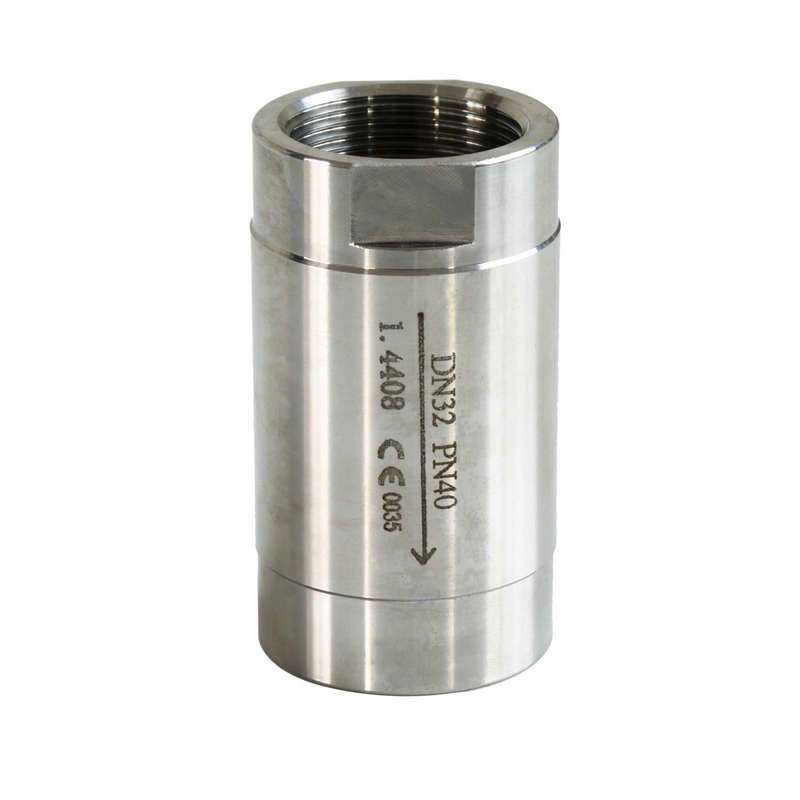

1Pc spring vertical check valve

1)Material

A105, 304, 304L, 316, and so on

2)Size

1/4''-4''&DN6-DN100

3)Certificate

ISO9001: 2000,CE

4)Working pressure

5)Connection Ends

Socket weld or Threaded: NPT, BSP, BSPT etc.

6)Suitable medium

Petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, high&low pressure pipeline etc.

7)Temperature Range

-20-250 degree C

8)Type:

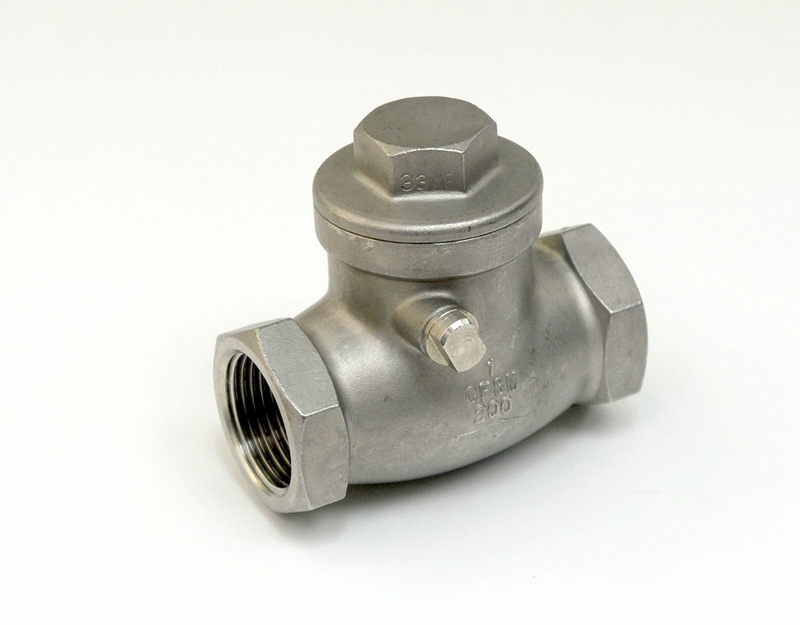

1PC BALL VALVE, 2PC BALL VALVE, 2PC BALL VALVE LIGHT DUTY, 2PC BALL VALVE DIN3202 TYPE, 3PC BALL VALVE, 3PC BALL VALVE WITH DIRECT MOUNTING PAD, 3-WAY BALL VALVE( L & T TYPE), 2PC FLANGE BALL VALVE ( JIS, ANSI, DIN); 3PC FLANGE VALL VALVE( JIS & ANISI & DIN); MINI BALL VALVE, BIBCOCK VALVE, GATE VALVE; GLOBE VALVE; SWING CHECK VALVE; 1PC SPRING VERTICAL CHECK VALVE; 2PC SPRING VERTICAL CHECK VALVE; 3PC SPRING VERTICAL CHECK VALVE; Y-STRAINER; ETC.

Our advantage

We have been worked in this area for more than 15 years, and we know each market's request, with a good replutation among our customers, we always persuit a high quality and best service and price .

sample test before machining, and 100% test after the machining

We also have a series of products such as: flanges, pipes, forged fittings, ball vavles and butterfly valves; And some hardware parts such: Post Anchors, Ground Screws, and some other wooden connectors.

7day / 24 hrs online service, and Fastest delivery time.

we can do OEM products

Shipment

Delivery time

usually 25 days around and can negotiate as per order qty

Shipping port

TIANJIN XINGANG

Term of Payment

T/T, L/C, DP etc.

Package detail

polybag+cartons+pallet / wooden case

MOQ

 20 PCS/size
