ADDRESS
BWGCB21
BEWIN
8481804090
Tianjin port
BSP NPT PT
Durable
1000 WOG
1/4''-4''
Sliver
Thread
Casting
Stainless steel 304/316
corrosion protection
Industry, water, gas , oil
polybag+cartons+pallet / wooden case according to customer's requirement
10 pcs
Availability: | |
---|---|
Quantity: | |
Configured Product Information
Serviceable Series: two piece standard port 304/304L/316/316L stainless steel ball valve.
Body seal and Stem Seal are glass reinforced PTFE. Seats are RPTFE.
Pipe connections are NPT (National Pipe Taper)/BSP female screwed end.
Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P.
Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design.
Products are marketed per Valve Standard Terms & Conditions. All Valve Products MADE IN CHINA.
Valve operator is manual Stainless Steel Lever style handle with vinyl grip secured with locking stem nut.
Specification
Sellable | Yes |
Valve Type | Two-way, ON/OFF |
Valve Style | Two-Piece Body-Standard Port |
Valve Size | 1/4''-4'' |
Valve Body Material | Stainless steel |
Valve Temperature Range | -20°F to 400°F (-28.8°C to 204.4°C) |
Valve Pressure Rating | 1,000 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI |
Application | Applied to stainless steel pipeline system, water system, petrolum system etc |
Connection Ends | Socket weld or Threaded: NPT, BSP, BSPT etc. |
Configured Product Information
Serviceable Series: two piece standard port 304/304L/316/316L stainless steel ball valve.
Body seal and Stem Seal are glass reinforced PTFE. Seats are RPTFE.
Pipe connections are NPT (National Pipe Taper)/BSP female screwed end.
Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P.
Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design.
Products are marketed per Valve Standard Terms & Conditions. All Valve Products MADE IN CHINA.
Valve operator is manual Stainless Steel Lever style handle with vinyl grip secured with locking stem nut.
Specification
Sellable | Yes |
Valve Type | Two-way, ON/OFF |
Valve Style | Two-Piece Body-Standard Port |
Valve Size | 1/4''-4'' |
Valve Body Material | Stainless steel |
Valve Temperature Range | -20°F to 400°F (-28.8°C to 204.4°C) |
Valve Pressure Rating | 1,000 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI |
Application | Applied to stainless steel pipeline system, water system, petrolum system etc |
Connection Ends | Socket weld or Threaded: NPT, BSP, BSPT etc. |
Features:
1.1000PSI/PN63
2.Reduce Port
3.Investment Casting
4.Blow out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(CE0036) Approved
7.Casting Approved Ad2000-W0
8.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
9.Inspection Testing: API598, EN 12266
Features:
1.1000PSI/PN63
2.Reduce Port
3.Investment Casting
4.Blow out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(CE0036) Approved
7.Casting Approved Ad2000-W0
8.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
9.Inspection Testing: API598, EN 12266
Company Information

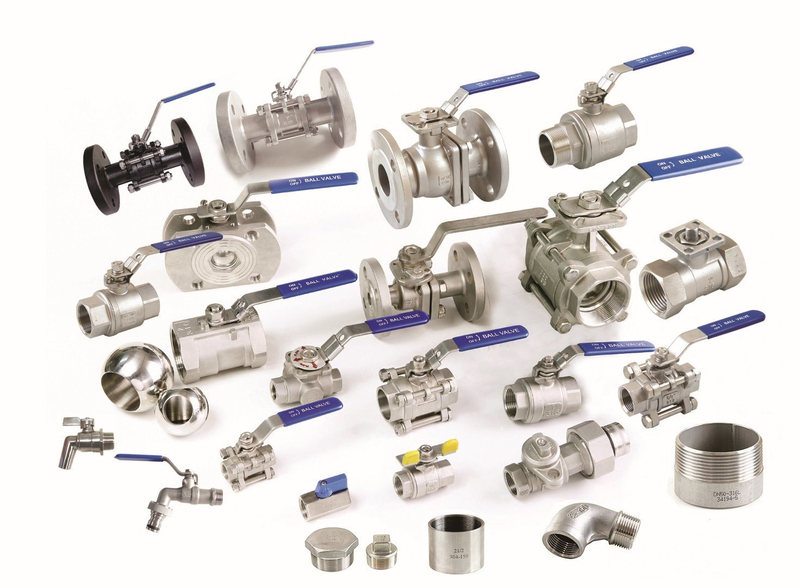

Cangzhou Bewin Pipeline Co.,Ltd is located in Cangzhou city Hebei Province. Our main products are all kinds of stainless steel ball valve, globe valve, gate valve, strainer, quick coupling and fittings. The company introduces the advanced silicon sol lost wax precision casting process, well appointed casting equipments, high-precision CNC machines and machining center.
On the testing aspect,we have Swiss ARL spectrograph, Metallurgical Microscope, hardness tester, universal testing machine, three-dimensional and other test instrument. We have a complete production line from mold design to casting, machining, and surface treatment. On the technical aspect, we have strong technical R&D ability to meet customers' special process demands, such as deep and complex cavity, accurate positioning etc.
Currently our major product material are 304, 304 L, 316, 316L, WCB, and our company produces a variety of precision casting and processing of finished parts by the standards of GB, ASTM, ANSI, BS, DIN, JIS, etc. The application is also ver broad, covering almost the entire machinery manufacturing and machining industry in this field.
Company Information
Cangzhou Bewin Pipeline Co.,Ltd is located in Cangzhou city Hebei Province. Our main products are all kinds of stainless steel ball valve, globe valve, gate valve, strainer, quick coupling and fittings. The company introduces the advanced silicon sol lost wax precision casting process, well appointed casting equipments, high-precision CNC machines and machining center.
On the testing aspect,we have Swiss ARL spectrograph, Metallurgical Microscope, hardness tester, universal testing machine, three-dimensional and other test instrument. We have a complete production line from mold design to casting, machining, and surface treatment. On the technical aspect, we have strong technical R&D ability to meet customers' special process demands, such as deep and complex cavity, accurate positioning etc.
Currently our major product material are 304, 304 L, 316, 316L, WCB, and our company produces a variety of precision casting and processing of finished parts by the standards of GB, ASTM, ANSI, BS, DIN, JIS, etc. The application is also ver broad, covering almost the entire machinery manufacturing and machining industry in this field.
Packing∇ivery
Packing
1.Polybag+Cartons+Pallet
2.Inner Carton Box, Outside Wooden Case/Pallet
3.Customized according to customer's requirements.
Delivery Details
1.Normal delivery times is from 15 to 45 days after receiving the deposit
2.According to the quantities and specifications of each
order
Shipping
1. Large Quantity Transport By Sea
2. Small Quantity or Sample Transport By Air
3. Inland Transport By Train
4. Shipping according to customers requirement
PORT: Xingang Port , Qingdao Port, Beijing Airport
